How to Bleed Motorcycle Brakes (and When to Replace the Caliper or Master Cylinder)

A spongy brake lever is one of those problems that's easy to ignore until it isn't. Air in the lines, old fluid or a tired master cylinder all feel the same from the seat: you squeeze, the lever comes back toward the bar, and the bike slows down less than you expected. Bleeding motorcycle brakes fixes most of it, takes about 30 minutes, and needs almost no tools. Here's how to do it properly, plus how to tell when bleeding isn't going to be enough.

When to bleed your brakes

• The lever or pedal feels soft or spongy, or pumps up firmer after a few squeezes.
• The fluid is dark. Fresh brake fluid is nearly clear or light amber. Brown or black fluid is full of moisture and debris. Most manufacturers say to replace it every two years regardless of mileage.
• You've opened the system: new lines, a new or used caliper, a rebuilt master cylinder, or a caliper you took off to change pads and let dangle.
• The bike sat for a long time. Brake fluid absorbs water from the air, and water in the system lowers the boiling point and corrodes pistons.

What you need

• The right brake fluid. The reservoir cap tells you: most modern bikes use DOT 4, some older ones DOT 3, a few DOT 5.1. DOT 3, 4 and 5.1 can be mixed in a pinch. Never put DOT 5 (silicone) into a system designed for the others.
• A length of clear tubing that fits snugly over the bleed nipple (usually 3/16" or 1/4" ID).
• A small bottle or jar to catch fluid.
• A box-end wrench for the bleed screw: 8 mm on most Japanese bikes, 10 or 11 mm on some European ones. A box end, not an open end, so you don't round the screw.
• Rags, a bucket of water, and nitrile gloves. Brake fluid strips paint fast; rinse any spill immediately.
• Optional but helpful: a one-way bleeder valve, a vacuum bleeder, or a large syringe for reverse bleeding.

How to bleed motorcycle brakes: step by step

This is the classic pump-and-hold method. It works on the front and rear, with or without a helper.

1. Protect the paint. Drape rags over the tank, fender and any painted parts below the reservoir.
2. Open the reservoir. Turn the bars so the reservoir sits level. Remove the cap and diaphragm and top up with fresh fluid. Never let the reservoir run dry during the job or you'll pull air into the master cylinder and start over.
3. Fit the tube. Push the clear tube onto the caliper's bleed nipple and put the other end in your catch bottle with an inch of fluid in the bottom so air can't be drawn back in.
4. Pump and hold. Squeeze the lever three or four times, then hold it in.
5. Crack the bleeder. With the lever held, open the bleed screw about a quarter turn. Fluid (and bubbles) push into the tube and the lever moves toward the bar.
6. Close, then release. Snug the bleeder before letting go of the lever. Then release the lever. Order matters: if you release first, the caliper sucks air back in.
7. Repeat until the fluid in the tube runs clear with no bubbles. Check the reservoir every few cycles and top it up.
8. Two front calipers? Bleed the one farthest from the master cylinder first, then the other.
9. Finish. Snug the bleeder to spec (just past hand-tight; they strip easily), refit the rubber cap, fill the reservoir to the upper line, refit the diaphragm and cap, and rinse everything with water.
10. Test. Pump the lever: it should be firm and stay firm. Roll the bike in the driveway and check the brakes at walking pace before you ride.

The rear brake is the same process with the pedal, and it's usually easier because the reservoir is bigger and the line is shorter.

When the lever is still spongy after bleeding

Air is stubborn on motorcycles because the master cylinder sits at the top and the lines have high spots. Try these in order:

• Tap the lines and caliper with a screwdriver handle while bleeding to knock bubbles loose.
• Zip-tie the lever to the bar overnight. The pressure lets small bubbles migrate up to the reservoir. Bleed again in the morning.
• Bleed the banjo bolt at the master cylinder. Wrap it in a rag, squeeze the lever, crack the bolt a fraction, close, release. Air loves to hide there.
• Reverse bleed. Fill a syringe with fluid, connect it to the caliper bleed nipple with the tube, and push fluid up through the system into the reservoir. Air naturally wants to go up, so this method clears stubborn systems fast. Keep an eye on the reservoir so it doesn't overflow.
• Vacuum bleed. A hand vacuum pump on the bleed nipple pulls fluid and air down through the line without pumping the lever.
• New or rebuilt master cylinder? Bench-bleed it before installation, or at least bleed at its banjo bolt first. A dry master cylinder can take forever to prime through the whole system.

When bleeding isn't the problem: bad master cylinder vs. bad caliper

If you've done everything above and the lever still isn't right, you're probably looking at a worn part, not trapped air.

Signs of a bad brake master cylinder

• The lever slowly sinks toward the bar while you hold steady pressure. The internal seal is letting fluid bypass the piston.
• The lever never builds pressure no matter how much you bleed, and no air comes out.
• Fluid weeping around the lever pivot or a wet spot under the reservoir.
• The fluid in the reservoir turns black quickly after a change (the seals are breaking down).

Signs of a bad brake caliper

• The brake drags or the wheel doesn't spin freely: a seized or sticking piston.
• One side of the pads wears much faster than the other.
• Fluid on the caliper body or the inside of the wheel: a torn piston seal.
• Pistons that are pitted, rusty or scored when you push them out.

Rebuild or replace?

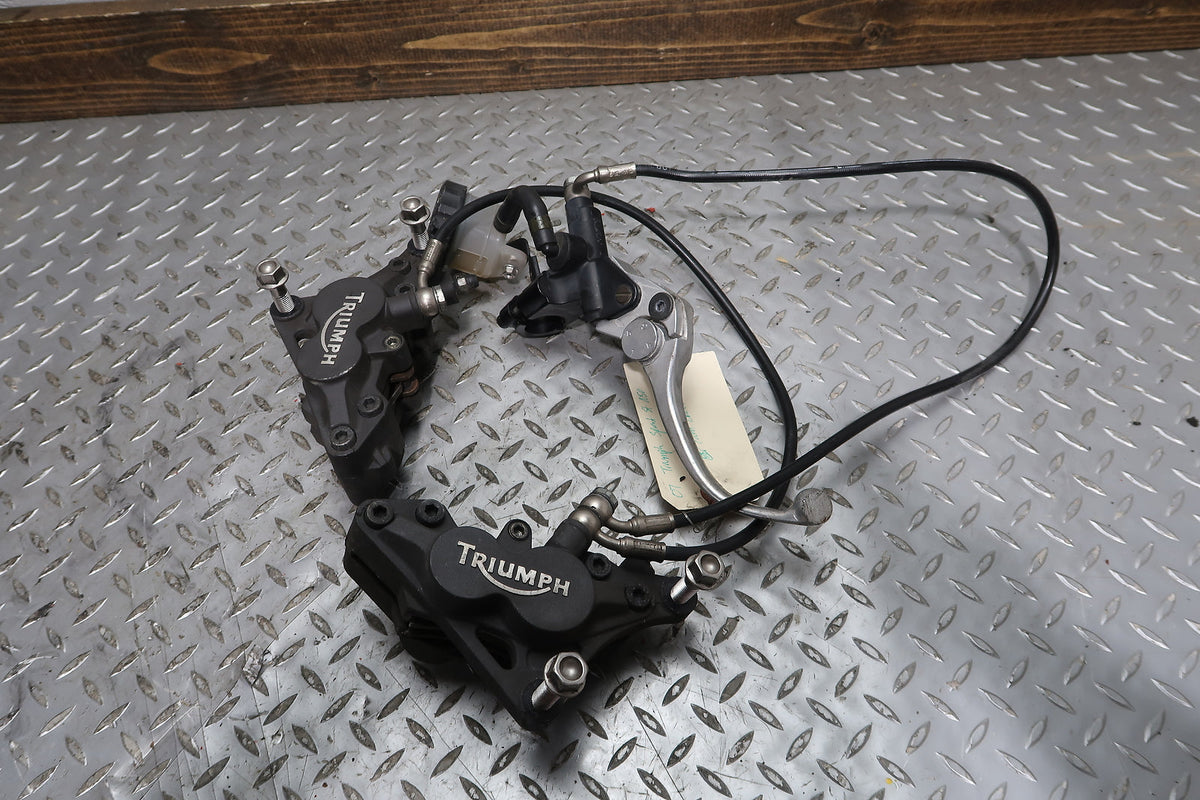

Seal kits are cheap and rebuilding a caliper or master cylinder is a reasonable Saturday job if the bores and pistons are clean. But if the caliper pistons are pitted, the master cylinder bore is scored, or the bleed screw has snapped off in the caliper (it happens), a rebuild won't hold. That's when a good used OEM caliper or master cylinder from a low-mileage donor bike makes sense: it's the factory part, it's often a fraction of new, and you can still put a fresh seal kit in it for peace of mind.

When you buy a used caliper or master cylinder, ask for photos of the pistons and the bore, confirm the bleed screw isn't seized, and match the part number to your year range. Front calipers in particular are left- and right-specific.

Safety notes

• Brake fluid is toxic and eats paint. Gloves, eye protection, and rinse spills right away.
• Dispose of old fluid at an auto parts store or recycling center, not down the drain.
• Always test brakes at walking speed before riding on the road. If anything feels wrong, stop and fix it.

About the author: Written by the crew at JTL Powersports, a motorcycle dismantler in Hartville, Ohio, run by two riders who have been stripping complete bikes and selling the parts individually since 2004. Questions about anything in this guide? Email jtlpowersports@gmail.com.
