Bad Stator Symptoms and How to Test a Motorcycle Stator with a Multimeter

Your battery keeps going flat, the headlight dims at idle, and the bike died on the highway last week. Before you buy a new battery (again), test the stator. It's a 15-minute job with a $20 multimeter, and it will tell you whether the problem is the stator, the regulator/rectifier, or something simpler.

What does a stator do on a motorcycle?

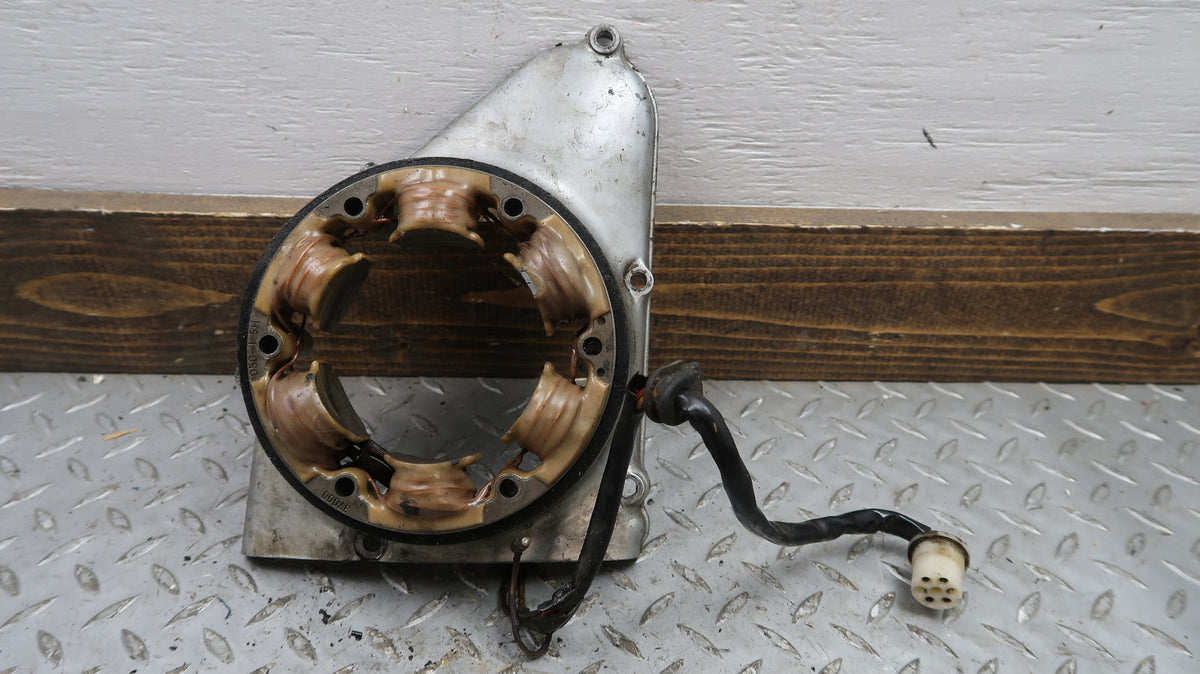

The stator is your bike's generator. It's a ring of copper windings bolted inside the engine's side cover, and a magnetic rotor (the flywheel) spins around it on the end of the crankshaft. As the magnets pass the windings they induce alternating current: three separate phases on most modern bikes, which is why the stator has three yellow (or white) wires coming out of it.

That AC power goes to the regulator/rectifier, which converts it to DC and caps it at roughly 14 volts to charge the battery and run the lights, ignition, fuel pump and ECU. On many bikes the stator also carries a separate pickup coil that tells the ignition when to fire.

If the stator fails, the bike runs off the battery alone until the battery is empty. Then it dies.

Bad stator symptoms

• Battery won't stay charged. You charge it, ride, and a few days later it's flat again. A new battery "fixes" it for a week.
• Lights dim at idle and brighten when you rev. Classic low-output symptom.
• Bike dies while riding, often after 30-60 minutes once the battery is drained. Usually restarts after a charge.
• Hard starting, weak starter, erratic idle as system voltage sags.
• Misfire or backfire on bikes where the ignition pickup lives on the stator.
• Burnt smell or a melted stator connector. Pull the plug and look. Browned, blackened or melted pins are a giveaway.
• Charging voltage under 13 volts at the battery with the engine at 3,000-5,000 rpm.

Every one of these symptoms can also be caused by a bad regulator/rectifier, a corroded connector or a worn-out battery. That's why you test instead of guess.

Rule out the easy stuff first

1. Battery. Fully charge it, let it rest an hour, and check voltage. A healthy battery reads 12.6 volts or higher. If it's below 12.4 after a full charge, or it drops fast under load, replace it before you chase anything else.
2. Charging voltage. Meter on DC volts across the battery terminals, engine running. At idle you should see roughly 13 volts; at 3,000-5,000 rpm, 13.5-14.8 volts. Under 13 means the charging system isn't keeping up. Over 15 means the regulator is failing and overcharging.
3. Connectors and grounds. Unplug the stator and regulator connectors and look for green corrosion, melted plastic or pushed-out pins. Check the main ground strap from the battery to the frame and engine. A bad ground mimics a bad stator surprisingly well.

How to test a motorcycle stator with a multimeter

You'll need a digital multimeter, the stator connector location (usually near the regulator or under the seat/tank) and your service manual for the exact specs. The three tests below work on almost any three-phase stator.

Test 1: Resistance (engine off)

1. Unplug the stator connector so you're testing the stator alone.
2. Set the meter to ohms, lowest range.
3. Measure between each pair of stator wires: 1-2, 2-3, 1-3.

What you want: a low, nearly identical reading on all three pairs, typically somewhere between 0.1 and 1.5 ohms depending on the bike (the manual lists the spec). Bad: "OL" or infinite on any pair (an open winding), or one pair reading noticeably higher than the others (a partially burnt winding). Cheap meters struggle below 1 ohm, so touch the probes together first and subtract that reading.

Test 2: Short to ground (engine off)

1. Meter still on ohms, or continuity mode.
2. Put one probe on each stator wire in turn and the other on a clean spot of bare engine case or the negative battery terminal.

What you want: "OL" or no continuity on all three wires. Bad: any reading at all. A winding that's shorted to ground has burnt through its insulation and the stator is done.

Test 3: AC output (engine running)

1. Leave the stator unplugged from the regulator. Keep the wires from touching each other or the frame.
2. Set the meter to AC volts.
3. Start the bike and measure across each pair of wires at idle, then at about 5,000 rpm.

What you want: all three pairs within a few volts of each other, rising with rpm. Most bikes make roughly 20-30 volts AC at idle and 50-80 volts at 5,000 rpm; your manual has the exact figure. Bad: one phase much lower than the others, or all three well below spec.

Test 4: Look at it

If the electrical tests are borderline, pull the stator cover. Healthy windings are uniform copper or coated a clear amber. A bad stator shows dark brown or black windings, flaking insulation, or one section visibly darker than the rest. That visual confirmation is worth the cost of a cover gasket.

Stator passes, still no charge? Test the regulator/rectifier

If the stator makes good AC on all three phases but the battery still isn't seeing 13.5+ volts DC, the regulator/rectifier is the next suspect. Many bikes from the late 90s through the 2010s are known for cooking their regulators, and a failed regulator can take the stator with it. Check for a hot-to-the-touch regulator, a melted connector, and a DC output that's either low or over 15 volts.

Why stators fail

• Heat. The stator lives in hot engine oil. Overheating, low oil, or a regulator that dumps excess load back into the windings will cook the insulation.
• Overload. Aftermarket lighting, heated grips and a big stereo can demand more than the stator was designed to make.
• Bad connectors. A corroded plug adds resistance, which adds heat, which melts the plug and eventually the windings.
• Age and vibration. Insulation gets brittle; wires chafe against the cover.

Replacing the stator

Stator replacement is a side-cover job on most bikes: drain the oil (or lean the bike), pull the cover, unbolt the stator and the wire clamp, route the new one, new gasket, refill. Budget an hour or two.

A few things worth doing while you're in there:

• If the regulator killed the stator, replace both, or the new stator will die the same way.
• Cut out a melted connector and solder or crimp new terminals. Add dielectric grease.
• Check the stator cover for a cracked or leaking gasket surface.
• Test charging voltage after the job to confirm 13.5-14.8 volts.

Used OEM or new aftermarket? Cheap aftermarket stators are hit-and-miss; some are fine, some fail within a season. A used factory stator from a low-mileage donor bike, tested before it's listed, is usually the safer buy for the money, and for older bikes it may be the only option.
